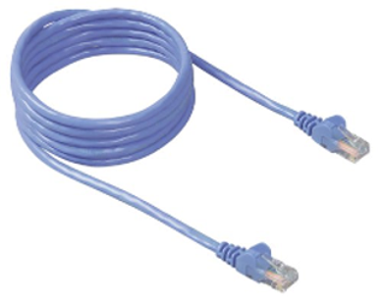

This highly interoperable networking system employs an ethernet standard. System information is sent across Cat 5 or fiber cabling to all Condoplex servers, controllers or workstations (guard, concierge terminals). The server/controllers form the core of the system with peripheral devices such as PC’s and printers acting as information collection and receiving devices. Other highly specialized low-cost embedded devices employing a polled Rs485, Wiegand and Rs232 are attached onto the core network through a system of hubs and photo-optical isolation circuits.
These components can be coordinated to work within a single site or be expanded to provide offsite reporting and diagnostic capabilities. Specialized products employing a proprietary protocol may be assimilated onto the network through our Gateway product. I.e. debit machines.
system architecture
